تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: Vanka
إصدار الشهادات: ISO9001：2015,CE
شروط الدفع والشحن
الحد الأدنى لكمية: 50 مجموعة
الأسعار: $0.3-$0.6 Sets
تفاصيل التغليف: 570x340x165
وقت التسليم: 30 يوم عمل
شروط الدفع: ل / c، / تي تي، ويسترن يونيون، مونيغرام
القدرة على العرض: 20000 مجموعة/مجموعة في الشهر
متانة: |
مقاومة للتآكل |
درجة الحرارة القصوى: |
80 درجة مئوية |
اسم المنتج: |
ملحقات الغاز |
متوافق مع: |
الغاز الطبيعي وغاز LP |
وزن: |
يعتمد على ملحق محدد |
نوع الغاز: |
NG LPG |
ضمان: |
ضمان الشركة المصنعة لمدة سنة واحدة |
الاستخدام المعمول به: |
فندق ، أسرة |
متانة: |
مقاومة للتآكل |
درجة الحرارة القصوى: |
80 درجة مئوية |
اسم المنتج: |
ملحقات الغاز |
متوافق مع: |
الغاز الطبيعي وغاز LP |
وزن: |
يعتمد على ملحق محدد |
نوع الغاز: |
NG LPG |
ضمان: |
ضمان الشركة المصنعة لمدة سنة واحدة |
الاستخدام المعمول به: |
فندق ، أسرة |

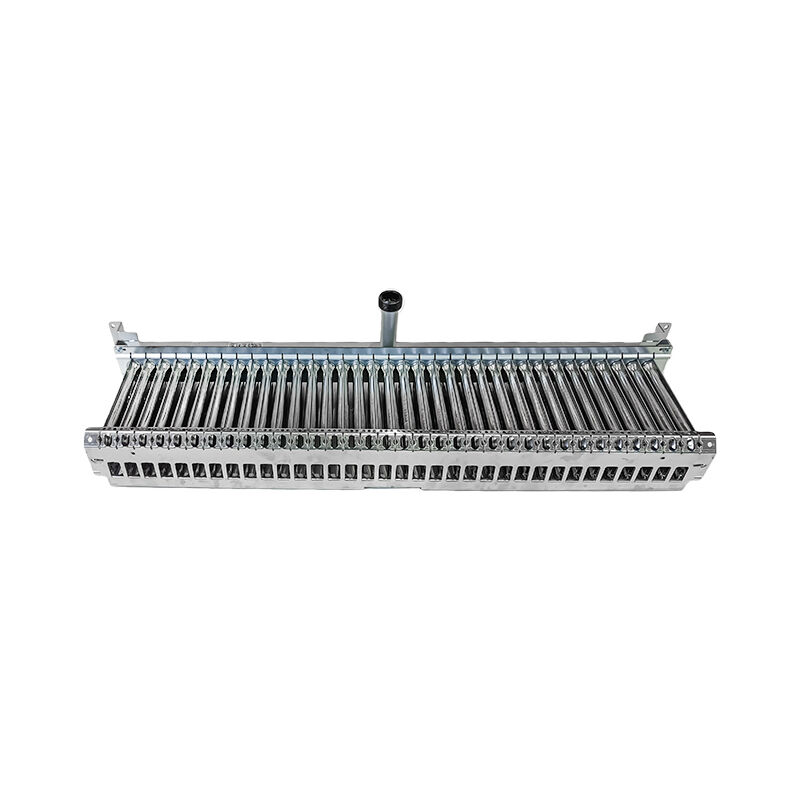

35 Row Burner Tray Industrial Grade Boiler Heating Replacement Component
Ultra-High 35-Row Matrix – The industry's highest density configuration provides up to 40% greater active combustion surface area versus standard trays, enabling unprecedented heat flux and rapid system response.
Forged for Extreme Duty – Constructed from Grade 310H Stainless Steel or Inconel-alloy variants, engineered to withstand sustained temperatures exceeding 1150°C and resist thermal fatigue, creep, and oxidation.
Intelligent Air-Fuel Stratification – Incorporates multi-stage venturi & baffle technology that ensures optimal stoichiometric mixing across all 35 rows, eliminating cold spots and maximizing combustion efficiency (>99.8%).
Global Project Support – Backed by a dedicated engineering team offering CFD simulation, combustion analysis, and on-site commissioning support for turnkey projects.
| Parameter | Specification |
|---|---|
| Product Class | Industrial Mega-Capacity Burner Tray |
| Row Configuration | 35 rows, ultra-high-density staggered array |
| Primary Applications | Utility Power Boilers, Large Industrial Steam Generators, Cogeneration (CHP) Plants, District Heating Hubs |
| Fuel Flexibility | Natural Gas / Heavy Oil / Syngas / Dual-Fuel & Tri-Fuel Configurations |
| Thermal Capacity Range | 5 MW – 50 MW+ (Scalable per project design) |
| Core Material Options | 310H Stainless Steel / Inconel 601/625 / Custom High-Temp Alloys |
| Design Pressure | Up to 4.0 MPa (580 PSI) |
| Connection Standard | ANSI B16.5 / DIN / JIS Flanges (Customizable) |
| Typical Dimensions | 800–1500 mm (Length) × 400–600 mm (Width) – Fully Customizable |
Q1: What scale of operation is this 35-row tray designed for?
A1: It is engineered for utility-scale and heavy industrial applications, including power plants (>10MW), large industrial complexes, refinery heaters, and major district energy systems requiring extreme reliability and output.
Q2: Can this component be integrated into existing boiler retrofits or must it be part of a new build?
A2: It is designed for both. We provide full retrofit engineering packages, including 3D laser scanning of existing combustion chambers, CFD modeling for integration analysis, and custom fabrication to match legacy flange and mounting layouts.
Q3: What is the lead time for a custom project of this scale?
A3: For engineered-to-order projects: 8–12 weeks from final design approval to shipment. This includes material procurement, precision fabrication, welding, NDT testing, and pre-shipment inspection. Expedited options are available.
Q4: What technical support do you provide during commissioning?
A4: We offer tiered support packages: Basic (documentation & remote guidance), Standard (onsite supervisor for 3–5 days), and Premium (full commissioning team including combustion tuning and operator training).
